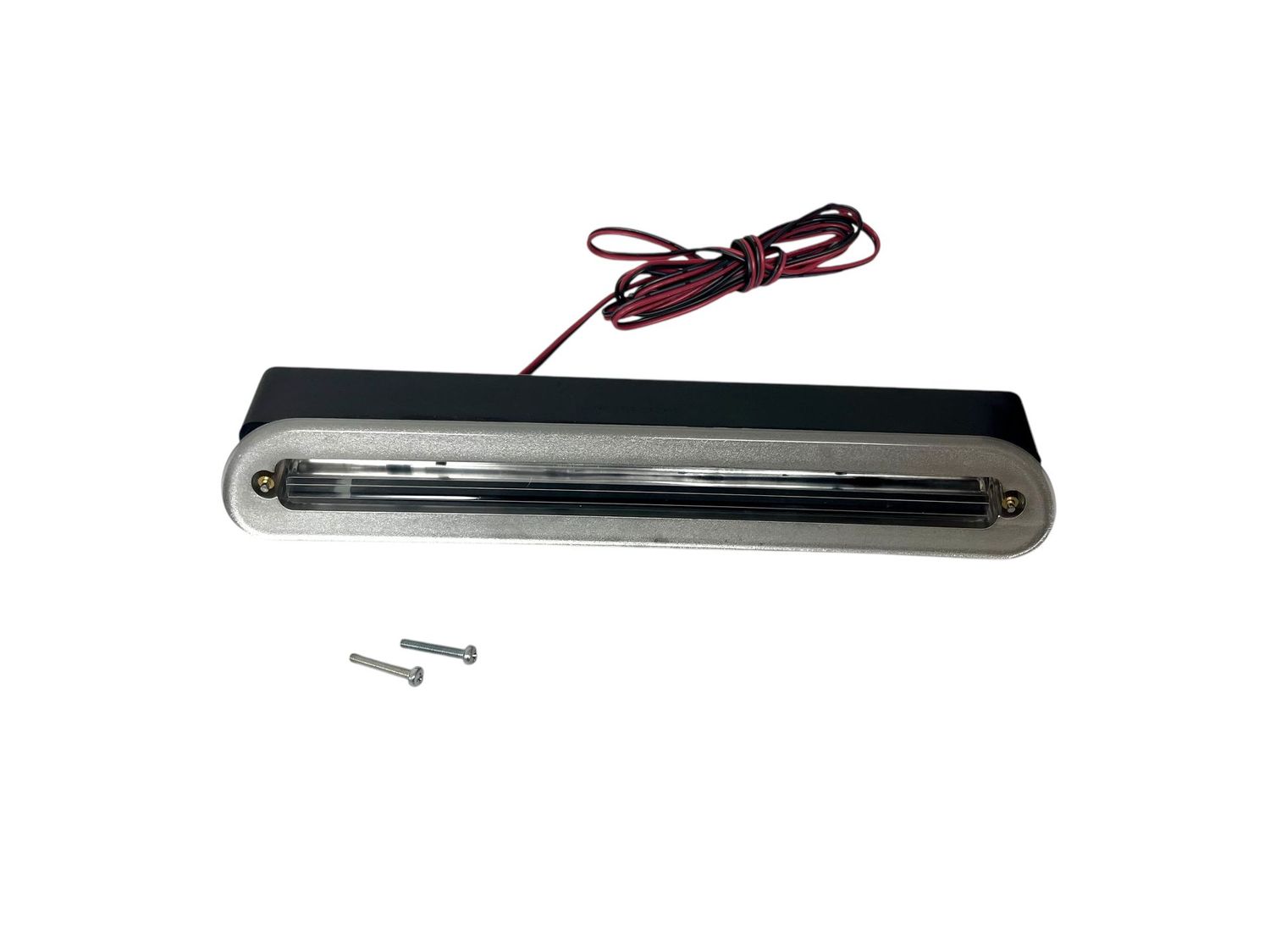

LEER 100XQ Truck cap Clear L.E.D. 3rd brake light # 138406 with hardware
+4
+3
+2

LEER 100XQ Truck cap Clear L.E.D. 3rd brake light # 138406 with hardware

Back to catalog
$29.50
In stock
Product Details
Brand: AMERICAN TECHNOLOGY

LEER 100XQ Clear Led third brake light # 138406:

*Please verify the shape of your light compared to the pictures we provide in this listing before purchasing. Newer 100XQ models may have a different light.
The LEER #138406 clear brake light is a direct replacement for the LEER 100XQ model truck cap. Installation is easy and will only require basic tools to complete. The LEER 100XQ typically came with some type of wiring harness for the lighting. One side of the harness had a plug that connected to the lights on the truck cap and the other side of the plug was wired to the vehicle. This harness would supply the brake light/dome light with a ground and a power source. If you 100XQ does have the original harness, you will remove the pins/wiring from the old light and reinsert the pins/wiring from the new light. The installation bezel you will receive with you new light will accept a dome light. On the back of the bezel you will see holes where you can screw the old or new dome light directly to it. This is the most recent design and will fit all 100XQ models that use the "cut in" style brake light. This light may also work with other manufacturers truck caps but you will have to look at the profile pic we have supplied in the listing to see if it will work with your cap.

Lamp Measurements:
  • Clear lens is 1-5/8" Tall and 9-7/8" Long.
  • Backside that fits through fiberglass is 5/8" Tall and 9-1/16" Long.
